【Unity】SBP - Scriptable Build Pipeline

郡墙
Programmer
阅读 2724
2022年4月12日
Scriptable Build Pipeline 是什么?能来带什么好处? 自定义 Unity 如何构建应用内容 将原先处于C++的引擎代码移到了C# 加速了AssetBundle的构建时间 改善增量构建处理 对开发者来说具备更多的灵活性

前言

Scriptable Build Pipeline 是什么?能来带什么好处?
  • 自定义 Unity 如何构建应用内容
  • 将原先处于C++的引擎代码移到了C#
  • 加速了AssetBundle的构建时间
  • 改善增量构建处理
  • 对开发者来说具备更多的灵活性

Unity版本要求

  • Unity 2018.3 +

术语

  • Asset
磁盘上的源文件,通常位于项目的 “Assets” 文件夹中。 此文件在内部导入到您的资产的可用于游戏的表示形式,其中可以包含多个 Object(SubAsset)。
  • Object (SubAsset)
单个Unity可序列化单元。也称为SubAsset。导入的Asset由一个或多个对象组成。
  • Includes
从中构造Asset的唯一 一组Object。
  • References
一组 需要被 Asset 使用,但不在该 Asset 中 的Object。

快速入门 & BuildIn切换

BuildAssetBundles

BuildIn Pipeline
using System.IO; using UnityEditor; public static class BuildAssetBundlesExample { public static bool BuildAssetBundles(string outputPath, bool forceRebuild, bool useChunkBasedCompression, BuildTarget buildTarget) { var options = BuildAssetBundleOptions.None; if (useChunkBasedCompression) options |= BuildAssetBundleOptions.ChunkBasedCompression; if (forceRebuild) options |= BuildAssetBundleOptions.ForceRebuildAssetBundle; Directory.CreateDirectory(outputPath); var manifest = BuildPipeline.BuildAssetBundles(outputPath, options, buildTarget); return manifest != null; } }
SBP
  • CompatibilityBuildPipeline 是SBP 目前官方使用SBP流程适配 BuildIn流程的 适配实现。
SBP不支持以前支持的 所有 功能。
using System.IO; using UnityEditor; // Added new using using UnityEditor.Build.Pipeline; public static class BuildAssetBundlesExample { public static bool BuildAssetBundles(string outputPath, bool forceRebuild, bool useChunkBasedCompression, BuildTarget buildTarget) { var options = BuildAssetBundleOptions.None; if (useChunkBasedCompression) options |= BuildAssetBundleOptions.ChunkBasedCompression; if (forceRebuild) options |= BuildAssetBundleOptions.ForceRebuildAssetBundle; Directory.CreateDirectory(outputPath); // Replaced BuildPipeline.BuildAssetBundles with CompatibilityBuildPipeline.BuildAssetBundles here var manifest = CompatibilityBuildPipeline.BuildAssetBundles(outputPath, options, buildTarget); return manifest != null; } }

注意事项

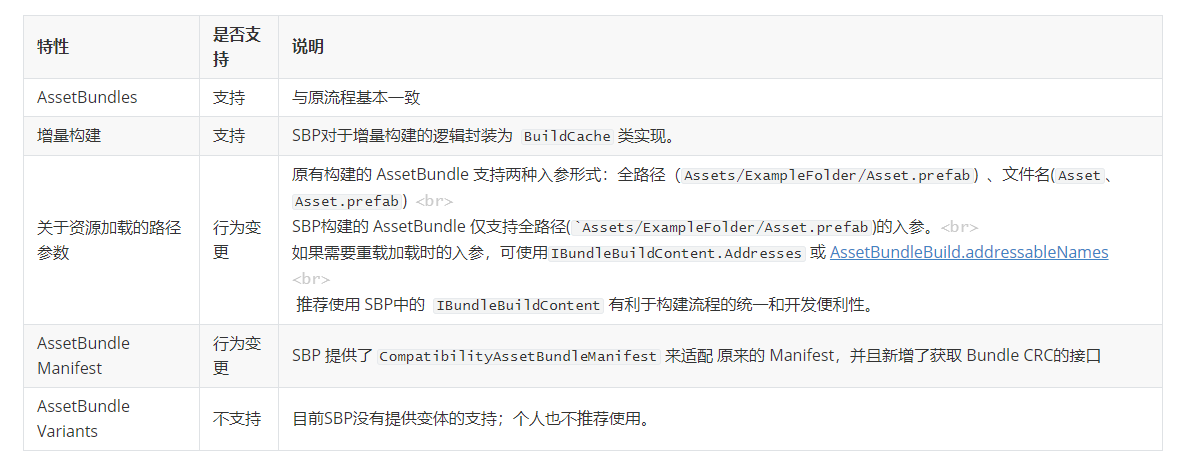

CompatibilityBuildPipeline.BuildAssetBundles vs BuildPipeline.BuildAssetBundle 的特性与行为的对比
点击图片更高清
AssetBundleBuild.addressableNames https://docs.unity3d.com/ScriptReference/AssetBundleBuild-addressableNames.html

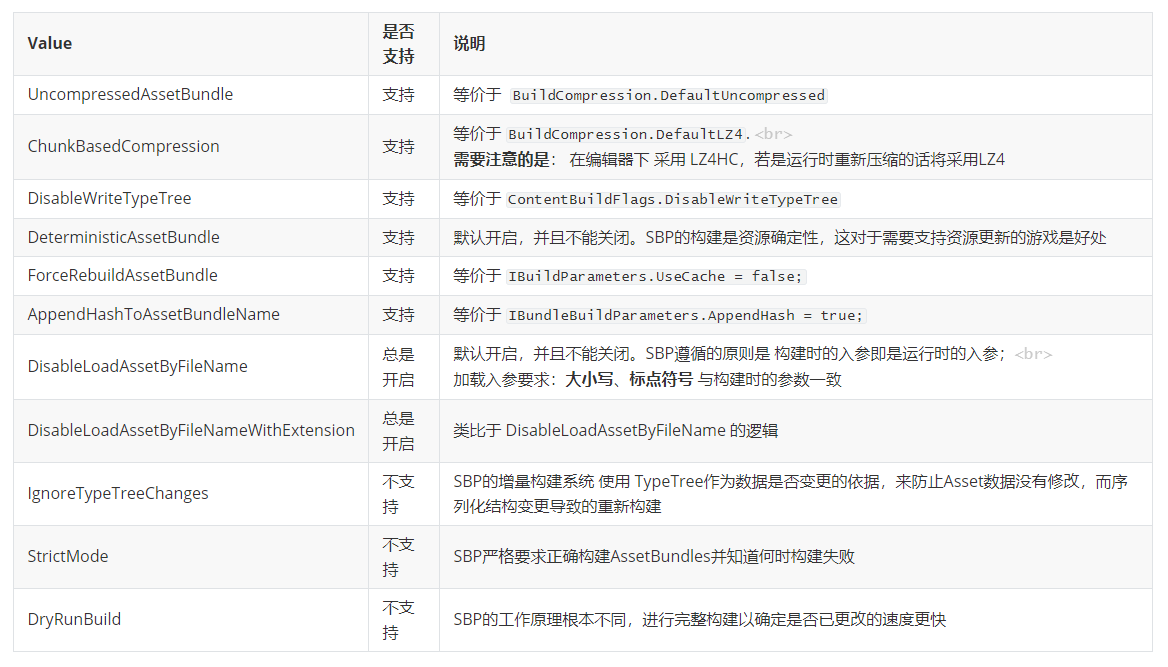

BuildAssetBundleOptions
点击图片更高清

AssetBundle SBP 构建流程

1.Setup - 平台环境初始化
  • SwitchToBuildPlatform
  • RebuildSpriteAtlasCache
2.Player Scripts - 工程源代码编译
  • BuildPlayerScripts
  • PostScriptsCallback
3.Dependency
  • CalculateSceneDependencyData
  • CalculateCustomDependencyData (UNITY_2019_3_OR_NEWER)
  • CalculateAssetDependencyData
  • StripUnusedSpriteSources
  • PostDependencyCallback
4.Packing
  • GenerateBundlePacking
  • GenerateBundleCommands
  • GenerateSubAssetPathMaps
  • GenerateBundleMaps
  • PostPackingCallback
5.Writing
  • WriteSerializedFiles
  • ArchiveAndCompressBundles
  • AppendBundleHash
  • GenerateLinkXml
  • PostWritingCallback
6.Generate manifest files
  • 官方 TODO 项

Setup

SwitchToBuildPlatform

  1. 切换 当前平台 为构建AssetBundle的 目标平台 对应的 BuildTargetGroup 、 BuildTarget
  2. 执行回调 IPreprocessShaders 、IProcessScene、IProcessSceneWithReport
关键逻辑:
EditorUserBuildSettings.SwitchActiveBuildTarget(m_Parameters.Group, m_Parameters.Target);

RebuildSpriteAtlasCache

  1. 针对目标平台 重新构建 工程内所有的 SpriteAtlas https://docs.unity3d.com/ScriptReference/U2D.SpriteAtlas.html
关键逻辑:
SpriteAtlasUtility.PackAllAtlases(m_Parameters.Target);

Player Scripts

BuildPlayerScripts

  1. 编译 目标平台 源代码 生成 ScriptInfo(TypeDB - 记录了脚本类型 、 属性数据)
TypeDB 为后续的序列化 提供 正确的字段名称;
关键逻辑:
PlayerBuildInterface.CompilePlayerScripts(m_Parameters.GetScriptCompilationSettings(), m_Parameters.ScriptOutputFolder);

PostScriptsCallback

  1. 回调脚本订阅了脚本编译完成节点的所有函数
上层开发者,注册监听 BuildCallbacks.PostScriptsCallbacks
关键逻辑:
IScriptsCallback.PostScripts(IBuildParameters parameters, IBuildResults results);

Dependency

CalculateSceneDependencyData - 计算所有场景的依赖信息

  1. 判断是否使用 Cache 机制
  2. 计算场景相关依赖项
关键逻辑:
#if UNITY_2019_3_OR_NEWER ContentBuildInterface.CalculatePlayerDependenciesForScene(scenePath, settings, usageTags, m_DependencyData.DependencyUsageCache); #else ContentBuildInterface.PrepareScene(scenePath, settings, usageTags, m_DependencyData.DependencyUsageCache, outputFolder); #endif
Cache 仅记录 预制相关的依赖

CalculateCustomDependencyData (UNITY_2019_3_OR_NEWER)

计算未被 AssetDatabase 追踪的 自定义 Assets 依赖的 Object关系
由 IBundleBuildContent.CustomAssets 自定义 AssetBundle包含的内容
关键逻辑:
foreach (CustomContent info in IBundleBuildContent.CustomAssets) { info.Processor(info.Asset, this); }

CalculateAssetDependencyData - 计算所有 Asset的依赖数据

  1. 基础入参
  2. 源代码的 TypeDB
  3. GraphicsSettings
  4. 场景的LightSetting
  5. 获取 Asset 的 所包含的 Objects
即为 该Asset引用的 Object;为 该 Asset YAML 序列化中 !u![ClassID] 段所表示的 Object。
  1. 通过 TypeDB 获取 Objects 所引用的 Objects
  2. 如果是 Sprite 类型资源,则进行 Sprite Atlas 的打包设置
  3. 计算 SubAssets
关键逻辑:
var includedObjects = ContentBuildInterface.GetPlayerObjectIdentifiersInAsset(asset, input.Target); var referencedObjects = ContentBuildInterface.GetPlayerDependenciesForObjects(includedObjects, input.Target, input.TypeDB); ObjectIdentifier[] representations = ContentBuildInterface.GetPlayerAssetRepresentations(asset, target); // Main Asset always returns at index 0, we only want representations, so check for greater than 1 length if (representations.IsNullOrEmpty() || representations.Length < 2) return; extendedData = new ExtendedAssetData(); extendedData.Representations.AddRange(representations.Skip(1));

StripUnusedSpriteSources - 删除 Assets引用中被Packer的Sprite

  1. 筛选出 已经被 SpritePacker 打包的Sprite,所归属的 SourceTexture
  2. 删除 Assets 中引用的 Sprite信息
关键逻辑:
var unusedSources = new HashSet<ObjectIdentifier>(); var textures = m_SpriteData.ImporterData.Values.Where(x => x.PackedSprite).Select(x => x.SourceTexture); unusedSources.UnionWith(textures); // Count refs from assets var assetRefs = m_DependencyData.AssetInfo.SelectMany(x => x.Value.referencedObjects); foreach (ObjectIdentifier reference in assetRefs) unusedSources.Remove(reference); // Count refs from scenes var sceneRefs = m_DependencyData.SceneInfo.SelectMany(x => x.Value.referencedObjects); foreach (ObjectIdentifier reference in sceneRefs) unusedSources.Remove(reference); // SetOutputInformation foreach (var source in unusedSources) { var assetInfo = m_DependencyData.AssetInfo[source.guid]; assetInfo.includedObjects.RemoveAt(0); ExtendedAssetData extendedData; if (m_ExtendedAssetData != null && m_ExtendedAssetData.ExtendedData.TryGetValue(source.guid, out extendedData)) { extendedData.Representations.Remove(source); if (extendedData.Representations.Count == 1) m_ExtendedAssetData.ExtendedData.Remove(source.guid); } }

PostDependencyCallback

  1. 在依赖计算完成后的事件通知
上层开发者,注册监听 BuildCallbacks.PostDependencyCallback
关键逻辑:
IDependencyCallback.PostDependency(IBuildParameters parameters, IDependencyData dependencyData);

Packing - 资源构建

GenerateBundlePacking - 组装AssetBundle以及计算依赖加载列表

Normal AssetBundle
Streamed Scene AssetBundle
ArchiveFileSystem
  1. 校验 Object 是否是 Assets 类型 或 自定义Assets类型 | Scene 类型,创建对应类型的 “容器结构”
可通过 ValidationMethods.ValidAssetFake 接管 校验逻辑
  1. 计算 Asset 所依赖的加载列表
- 剔除 Unity默认的内置资源引用 - 处理依赖关系中的重复递归依赖 & 打破环形依赖;(若是 Scene Bundle,则剔除 sharedAssets 的重复引用)
关键逻辑:
foreach (var bundle in m_BuildContent.BundleLayout) { if (ValidAssetBundle(bundle.Value, customAssets)) PackAssetBundle(bundle.Key, bundle.Value, assetToReferences); else if (ValidationMethods.ValidSceneBundle(bundle.Value)) PackSceneBundle(bundle.Key, bundle.Value, assetToReferences); } // Remove Default Resources and Includes for Assets assigned to Bundles foreach (ObjectIdentifier reference in references) { if (reference.filePath.Equals(CommonStrings.UnityDefaultResourcePath, StringComparison.OrdinalIgnoreCase)) continue; if (dependencyData.AssetInfo.TryGetValue(reference.guid, out AssetLoadInfo referenceInfo)) { referencedAssets.Add(referenceInfo); continue; } referencesPruned.Add(reference); } var referencedAssetsGuids = new List<GUID>(referencedAssets.Count); // Remove References also included by non-circular Referenced Assets // Remove References also included by circular Referenced Assets if Asset's GUID is higher than Referenced Asset's GUID foreach (AssetLoadInfo referencedAsset in referencedAssets) { var refObjectIdLookup = new HashSet<ObjectIdentifier>(referencedAsset.referencedObjects); bool circularRef = refObjectIdLookup.Select(x => x.guid).Contains(asset); if (!circularRef || (circularRef && asset > referencedAsset.asset || asset == referencedAsset.asset)) references.RemoveAll(refObjectIdLookup.Contains); referencedAssetsGuids.Add(referencedAsset.asset); } // Special path for scenes, they can use data from previous sharedAssets in the same bundle if (!previousSceneObjects.IsNullOrEmpty()) references.RemoveAll(previousSceneObjects.Contains);

GenerateBundleCommands - 为需要序列化的AssetBundle创建WriteOperation行为

  1. 初始化 AssetBundle MainAsset
  2. 创建对应的 BundleCommand (CreateAssetBundleCommand、CreateSceneBundleCommand + CreateSceneDataCommand)
AssetBundleCommand : 1.建立加载 Asset的入参 与 Object的映射关系 2.记录 AssetsBundle 中包含的Assets相关信息(依赖的Object hash、序列化组织形式等)并排序,以此确保每次序列化数据的稳定性 SceneBundleCommand : 1.建立加载 Scene 所包含需要序列化的Object与 加载的入参的映射关系 2.记录 SceneBundle 依赖的Object 至 preloadObjects SceneDataCommand : 1.建立加载Scene 所需要附加的Assets 的映射关系 2.记录 SceneBundle 依赖的Object 至 preloadObjects
关键逻辑:
Dictionary<GUID, string> assetToMainFile = new Dictionary<GUID, string>(); foreach (var pair in m_WriteData.AssetToFiles) assetToMainFile.Add(pair.Key, pair.Value[0]); foreach (var bundlePair in m_BuildContent.BundleLayout) { if (ValidAssetBundle(bundlePair.Value, customAssets)) { // Use generated internalName here as we could have an empty asset bundle used for raw object storage (See CreateStandardShadersBundle) var internalName = string.Format(CommonStrings.AssetBundleNameFormat, m_PackingMethod.GenerateInternalFileName(bundlePair.Key)); CreateAssetBundleCommand(bundlePair.Key, internalName, bundlePair.Value); } else if (ValidationMethods.ValidSceneBundle(bundlePair.Value)) { var firstScene = bundlePair.Value[0]; CreateSceneBundleCommand(bundlePair.Key, assetToMainFile[firstScene], firstScene, bundlePair.Value, assetToMainFile); for (int i = 1; i < bundlePair.Value.Count; ++i) { var additionalScene = bundlePair.Value[i]; CreateSceneDataCommand(assetToMainFile[additionalScene], additionalScene); } } }

GenerateSubAssetPathMaps

  1. 向 AssetBundle里插入 扩展资源 (“依赖资源”)
关键逻辑:
Dictionary<string, IWriteOperation> fileToOperation = m_WriteData.WriteOperations.ToDictionary(x => x.Command.internalName, x => x); foreach (var pair in m_ExtendedAssetData.ExtendedData) { GUID asset = pair.Key; string mainFile = m_WriteData.AssetToFiles[asset][0]; var abOp = fileToOperation[mainFile] as AssetBundleWriteOperation; int assetInfoIndex = abOp.Info.bundleAssets.FindIndex(x => x.asset == asset); AssetLoadInfo assetInfo = abOp.Info.bundleAssets[assetInfoIndex]; int offset = 1; foreach (var subAsset in pair.Value.Representations) { var secondaryAssetInfo = CreateSubAssetLoadInfo(assetInfo, subAsset); abOp.Info.bundleAssets.Insert(assetInfoIndex + offset, secondaryAssetInfo); offset++; } }

GenerateBundleMaps - 前向依赖 & 反向依赖

1.计算 前向依赖 & 反向依赖
前向依赖 : 记录 AssetBundle中Object依赖其他的AssetBundle的Object 信息 反向依赖 : 记录包中资源数据被其他源AssetBundle依赖的信息
2.使用依赖关系简化引用映射以及Object构建方式
关键逻辑:
// BuildReferenceMap details what objects exist in other bundles that objects in a source bundle depend upon (forward dependencies) // BuildUsageTagSet details the conditional data needed to be written by objects in a source bundle that is in used by objects in other bundles (reverse dependencies) using (m_Log.ScopedStep(LogLevel.Info, $"Temporary Map Creations")) { fileToCommand = m_WriteData.WriteOperations.ToDictionary(x => x.Command.internalName, x => x.Command); forwardObjectDependencies = new Dictionary<string, HashSet<ObjectIdentifier>>(); forwardFileDependencies = new Dictionary<string, HashSet<string>>(); reverseAssetDependencies = new Dictionary<string, HashSet<GUID>>(); foreach (var pair in m_WriteData.AssetToFiles) { GUID asset = pair.Key; List<string> files = pair.Value; // The includes for an asset live in the first file, references could live in any file forwardObjectDependencies.GetOrAdd(files[0], out HashSet<ObjectIdentifier> objectDependencies); forwardFileDependencies.GetOrAdd(files[0], out HashSet<string> fileDependencies); // Grab the list of object references for the asset or scene and add them to the forward dependencies hash set for this file (write command) if (m_DependencyData.AssetInfo.TryGetValue(asset, out AssetLoadInfo assetInfo)) objectDependencies.UnionWith(assetInfo.referencedObjects); if (m_DependencyData.SceneInfo.TryGetValue(asset, out SceneDependencyInfo sceneInfo)) objectDependencies.UnionWith(sceneInfo.referencedObjects); // Grab the list of file references for the asset or scene and add them to the forward dependencies hash set for this file (write command) // While doing so, also add the asset to the reverse dependencies hash set for all the other files it depends upon. // We already ensure BuildReferenceMap & BuildUsageTagSet contain the objects in this write command in GenerateBundleCommands. So skip over the first file (self) for (int i = 1; i < files.Count; i++) { fileDependencies.Add(files[i]); reverseAssetDependencies.GetOrAdd(files[i], out HashSet<GUID> reverseDependencies); reverseDependencies.Add(asset); } } } // Using the previously generated forward dependency maps, update the BuildReferenceMap per WriteCommand to contain just the references that we care about using (m_Log.ScopedStep(LogLevel.Info, $"Populate BuildReferenceMaps")) { foreach (var operation in m_WriteData.WriteOperations) { var internalName = operation.Command.internalName; BuildReferenceMap referenceMap = m_WriteData.FileToReferenceMap[internalName]; if (!forwardObjectDependencies.TryGetValue(internalName, out var objectDependencies)) continue; // this bundle has no external dependencies if (!forwardFileDependencies.TryGetValue(internalName, out var fileDependencies)) continue; // this bundle has no external dependencies foreach (string file in fileDependencies) { WriteCommand dependentCommand = fileToCommand[file]; foreach (var serializedObject in dependentCommand.serializeObjects) { // Only add objects we are referencing. This ensures that new/removed objects to files we depend upon will not cause a rebuild // of this file, unless are referencing the new/removed objects. if (!objectDependencies.Contains(serializedObject.serializationObject)) continue; referenceMap.AddMapping(file, serializedObject.serializationIndex, serializedObject.serializationObject); } } } } // Using the previously generate reverse dependency map, create the BuildUsageTagSet per WriteCommand to contain just the data that we care about using (m_Log.ScopedStep(LogLevel.Info, $"Populate BuildUsageTagSet")) { foreach (var operation in m_WriteData.WriteOperations) { var internalName = operation.Command.internalName; BuildUsageTagSet fileUsage = m_WriteData.FileToUsageSet[internalName]; if (reverseAssetDependencies.TryGetValue(internalName, out var assetDependencies)) { foreach (GUID asset in assetDependencies) { if (m_DependencyData.AssetUsage.TryGetValue(asset, out var assetUsage)) fileUsage.UnionWith(assetUsage); if (m_DependencyData.SceneUsage.TryGetValue(asset, out var sceneUsage)) fileUsage.UnionWith(sceneUsage); } } if (ReflectionExtensions.SupportsFilterToSubset) fileUsage.FilterToSubset(m_WriteData.FileToObjects[internalName].ToArray()); } }

PostPackingCallback

  1. 在完成 Pack逻辑后的回调事件
上层开发者,注册监听 BuildCallbacks.PostPackingCallback
关键逻辑:
IPackingCallback.PostPacking(IBuildParameters parameters, IDependencyData dependencyData, IWriteData writeData);

Writing

WriteSerializedFiles - 序列化前奏 - MetaData

1.获取 GraphicsSettings、TypeDB 、目标平台 、 ContentBuildFlags
// // 摘要: // Build options for content. [Flags] public enum ContentBuildFlags { // // 摘要: // Build content with no additional options. None = 0, // // 摘要: // Do not include type information within the built content. DisableWriteTypeTree = 1, // // 摘要: // Build Flag to indicate the Unity Version should not be written to the serialized // file. StripUnityVersion = 2, // // 摘要: // Build a development version of the content files. DevelopmentBuild = 4 }
\2. 查询缓存系统,构建缓存对象与需要重建的对象 3. 计算需要重建对象的 SerializedFileMetaData
Hash算法
  • SpookyHash
  • MD5
  • MD4
  • 可扩展 HasingMethods.GetHashAlgorithm 自定义 Hash算法
[Serializable] public class SerializedFileMetaData { /// <summary> /// A hash of all the serialized files /// </summary> public Hash128 RawFileHash; /// <summary> /// Hash of file contents. Some resource files may choose to exclude sections of their content from this hash. For example, /// serialized files exclude the header of their content which allows this hash not to change with new Unity versions. /// </summary> public Hash128 ContentHash; }
关键逻辑:
private SerializedFileMetaData CalculateFileMetadata(ref WriteResult result) { List<object> contentHashObjects = new List<object>(); List<object> fullHashObjects = new List<object>(); foreach (ResourceFile file in result.resourceFiles) { RawHash fileHash = HashingMethods.CalculateFile(file.fileName); RawHash contentHash = fileHash; fullHashObjects.Add(fileHash); if (file.serializedFile && result.serializedObjects.Count > 0) { using (var stream = new FileStream(file.fileName, FileMode.Open, FileAccess.Read)) { stream.Position = (long)result.serializedObjects[0].header.offset; contentHash = HashingMethods.CalculateStream(stream); } } contentHashObjects.Add(contentHash); } SerializedFileMetaData data = new SerializedFileMetaData(); data.RawFileHash = HashingMethods.Calculate(fullHashObjects).ToHash128(); data.ContentHash = HashingMethods.Calculate(contentHashObjects).ToHash128(); return data; }

ArchiveAndCompressBundles - 规整&数据压缩

  1. 构造 Task 对象用于抽象线程化支持
  2. 合并资源文件并根据压缩选项进行压缩 (该行为基于是否支持多线程运行坏境有所不同)
  3. 比较缓存文件与输出目录文件时间戳,若不同则拷贝缓存文件覆盖至输出文件路径
关键逻辑:
item.ResultDetails = new BundleDetails(); string writePath = string.Format("{0}/{1}", tempOutputFolder, item.BundleName); if (!string.IsNullOrEmpty(item.CachedArtifactPath)) writePath = item.CachedArtifactPath; Directory.CreateDirectory(Path.GetDirectoryName(writePath)); item.ResultDetails.FileName = item.OutputFilePath; item.ResultDetails.Crc = ContentBuildInterface.ArchiveAndCompress(item.ResourceFiles.ToArray(), writePath, item.Compression); CopyFileWithTimestampIfDifferent(writePath, item.ResultDetails.FileName, log);

AppendBundleHash - 追加Hash信息

  1. 仅在 AppendHashToAssetBundleName 开启才执行
关键逻辑:
string[] bundles = m_Results.BundleInfos.Keys.ToArray(); foreach (string bundle in bundles) { var details = m_Results.BundleInfos[bundle]; var oldFileName = details.FileName; var newFileName = string.Format("{0}_{1}", details.FileName, details.Hash.ToString()); details.FileName = newFileName; m_Results.BundleInfos[bundle] = details; File.Delete(newFileName); File.Move(oldFileName, newFileName); }

GenerateLinkXml - 生成AssetBundle使用的Link文件,便于代码裁剪

建议开启 IBuildParameters.WriteLinkXML
  1. 仅在 IBuildParameters.WriteLinkXML 选项开启执行
关键逻辑:
var linker = LinkXmlGenerator.CreateDefault(); foreach (var writeResult in m_Results.WriteResults) { linker.AddTypes(writeResult.Value.includedTypes); #if UNITY_2021_1_OR_NEWER linker.AddSerializedClass(writeResult.Value.includedSerializeReferenceFQN); #else if (writeResult.Value.GetType().GetProperty("includedSerializeReferenceFQN") != null) { linker.AddSerializedClass(writeResult.Value.GetType().GetProperty("includedSerializeReferenceFQN").GetValue(writeResult.Value) as System.Collections.Generic.IEnumerable<string>); } #endif } var linkPath = m_Parameters.GetOutputFilePathForIdentifier(k_LinkXml); linker.Save(linkPath);

PostWritingCallback

  1. 在完成所有写操作后回调事件
上层开发者,注册监听 BuildCallbacks.PostWritingCallback
关键逻辑:
IWritingCallback.PostWriting(IBuildParameters parameters, IDependencyData dependencyData, IWriteData writeData, IBuildResults results);
